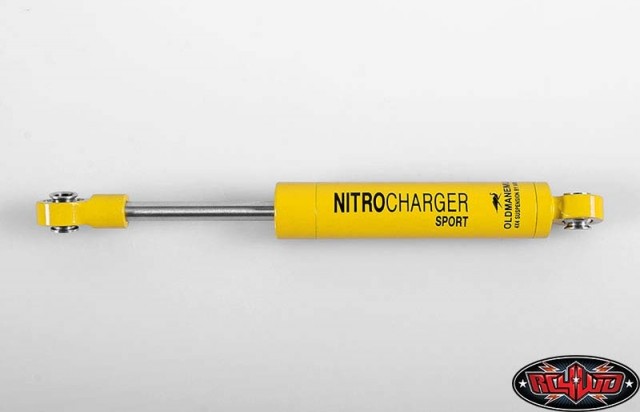

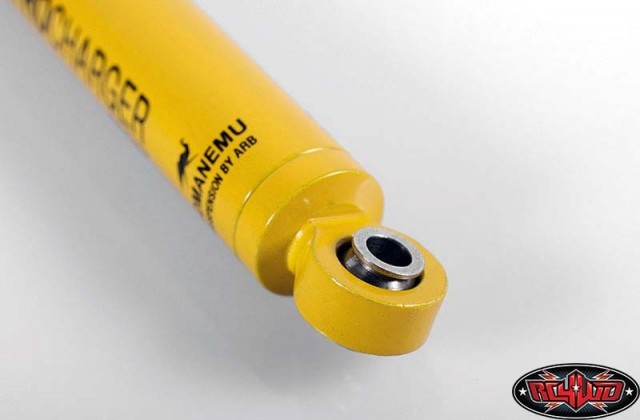

RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB
This is the all new Licensed Scale Shock to hit the market. Licensed from ARB 4x4 Accessories. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks. Available only from RC4WD and our Dealers.
Specifications:
- Machined Billet Aluminum
- Old Man Emu Detailing
- All New Internal Design
- Internal Spring Design
- Each Weight: 0.45oz / 13g
- Hole to Hole (Compressed): 2.62in / 66.8mm
- Hole to Hole (Uncompressed): 3.54in / 90mm
- Overall Length:3.87in / 98.4mm
- Travel Length:0.91in / 23.2mm
- Shock Body OD:0.39in / 10mm
- Shaft Diameter:0.13in / 3.5mm
What´s Included:
- 2x RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB
Optional Parts:
- Internal Springs for ARB and Superlift 90mm Shocks (Z-S1181)
- RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
- RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)
Replacement Parts:
- Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
Notes:
- Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024), But you will need two 1mm spacers.
- Fits Gmade Sawback
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- For Black Rubber Boot Z-S0891
- For Red Rubber Boot Z-S0948
- For Yellow Rubber Boot Z-S0962
- For Blue Rubber Boot Z-S0961
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
- When installing on Axial SCX10-3 please use a 5mm spacer (Z-S0821) on the shock tower.
ARB is a registered trademark of the ARB company. The ARB logo is property of ARBand used under license to RC4WD.
