RC4WD Leaf Under Mounts for Yota 2 / K44 Axles

PrisNOK599,00 inkl. mva.
Ønskeliste
Lagerstatus:
Utsolgt
Artikkelnr.:
Z-S2135
Produsent:
RC4WD
E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)

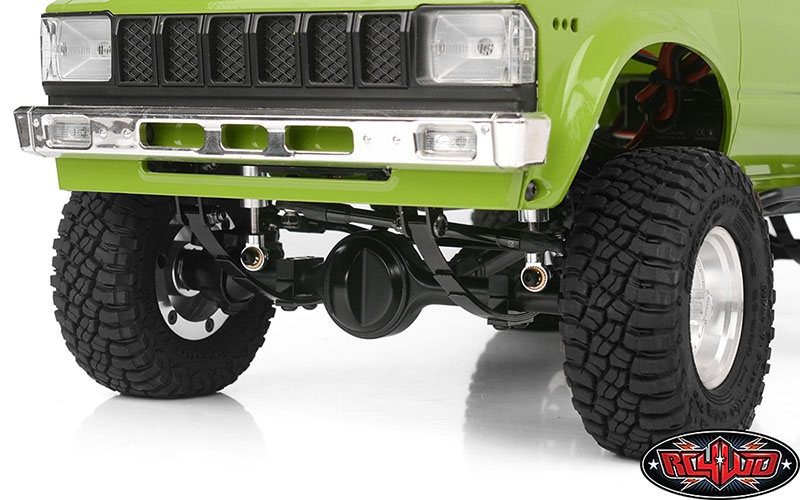

Leaf Under Mounts for Yota 2 / K44 Axles

Specifications:
  • CNC Machined
  • Billet Aluminum
  • Black Anodized Finish
  • Total Weight: 0.56oz / 16.0g
What's Included:

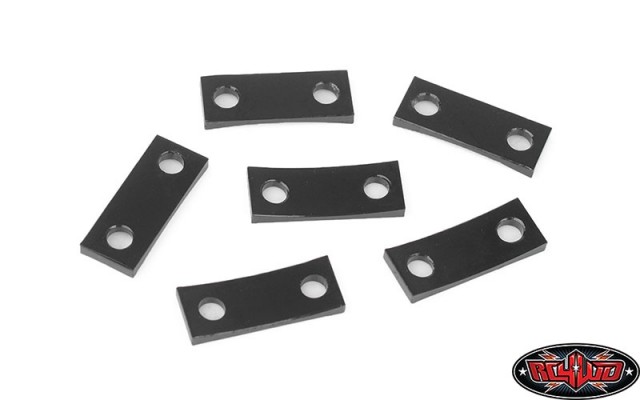

  • 1x Leaf Under Mounts for Yota 2 / K44 Axles
  • 8x M3 x16mm Steel Button Head Cap Screws

Replacement Hardware:
  • Steel Button Head Cap Screws M3 x16mm (10) (Z-S0656)

Notes:
  • Fits Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Fits Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • Fits K44 Ultimate Scale Cast Front Axle (Z-A0101)
  • Fits K44 Ultimate Scale Cast Rear Axle (Z-A0096)
  • These mounts will lower your truck 10-12mm.
  • For installation on the K44 axles please use the thicker brackets on front and rear axle.
  • For installation on the Yota II axles please use the thinner bracket on the front and thicker bracket on the rear.
  • Will not fit Yota I axles.

Interference with steering, driveline and axle pumpkin may result after install. Modification may be required.

We recommend RC4WD Bilstein SZ Series 50mm Scale Shock Absorbers (Z-D0081) in front and rear. Will work with either Front Shock Hoops for Gelande 2 Chassis (Z-S0798) or Shock Hoops for Trail Finder 2 Chassis (Z-S0597).

Taller shock hoop should use a 60-70mm shock.

These may require changes to your shocks and shock hoops.
This modification may limit the suspension travel of your truck.

These will install best with RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031) or RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission w/ O/U Drive Transfer Case (Z-U0040)

These may cause driveshaft rubbing when installing with R3 Scale 2 Speed Transmission (Z-U0025) and R3 Scale Single Speed Transmission (Z-U0028)
