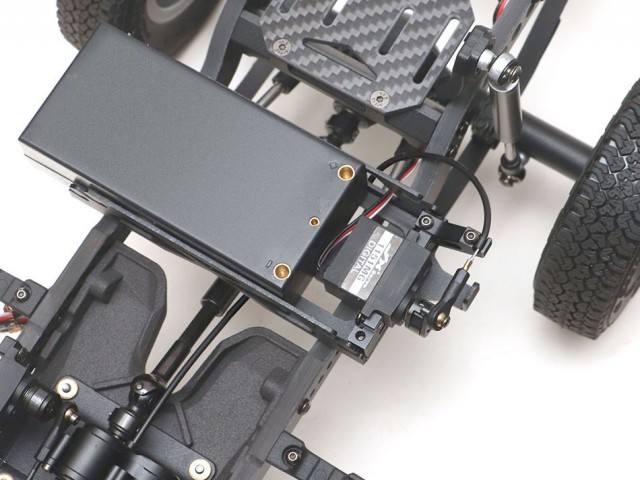

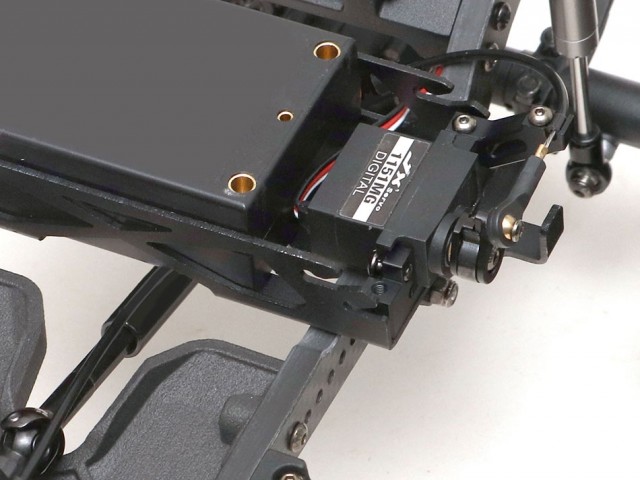

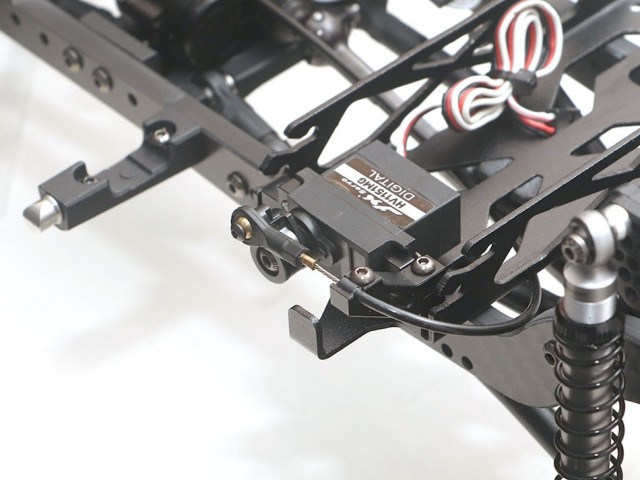

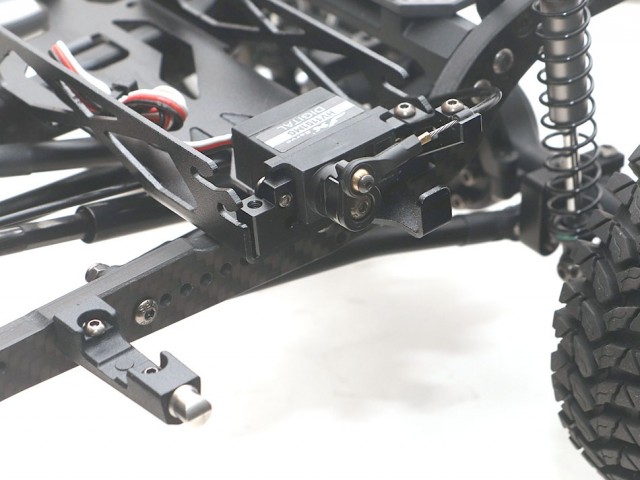

This is a mini servo mount with JX high voltage mini servo. This is for the optional SWD/DIG transfer case.

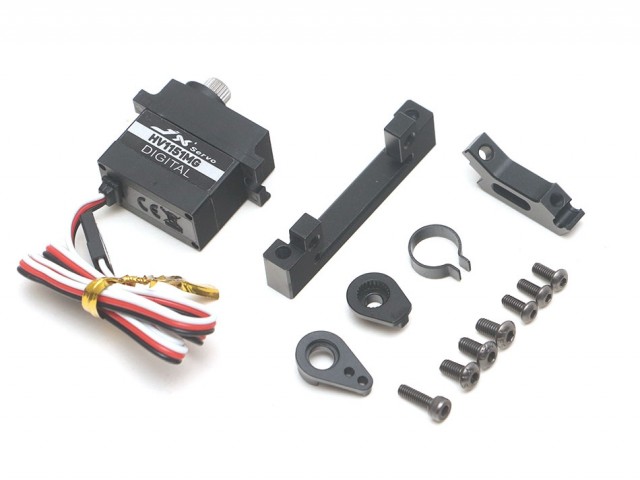

Includes:

• Mini Servo Mount Set BRD901101
• Aluminum 2 Speed Servo Horn Set BRLC7049
• JX HV Mini Servo JX/PDI-HV1151MG
• 12.9-Grade Hardware

For:

• BRX02
• BRX02 109

Mini Servo Specifications:

• Brand: JX Servo
• Model: JX/PDI-HV1151MG
• Working voltage: 6V~8.4V
• Working temperature: -20C°~ +60C°
• Dead band: 4usec
• Motor type: Core Motor
• Signal booster type: Digital
• Gear material: Metal gear
• Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
• Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
• Idle Current: 150mA (6.0V) | 180mA (8.4V)
• Load Current: 260mA (6.0V) | 340mA (8.4V)
• Size: 23.2 x 12.5 x 25.6mm
• Weight: 15g
• Tooth Count: 25
• Wire length: 310mm JR plug
• Black: Negative Red: Positive White: Signal
