Aikon AK32 4-in-1 35A AIO-V2 2-6S BLHeli_32 ESC

PrisNOK695,00 inkl. mva.
På lager: 8 stk.
Lagerstatus:
På lager: 8 stk.
Artikkelnr.:
AKAK324356
Produsent:
Aikon
  • Produktinfo
  • Produktanmeldelser (0)

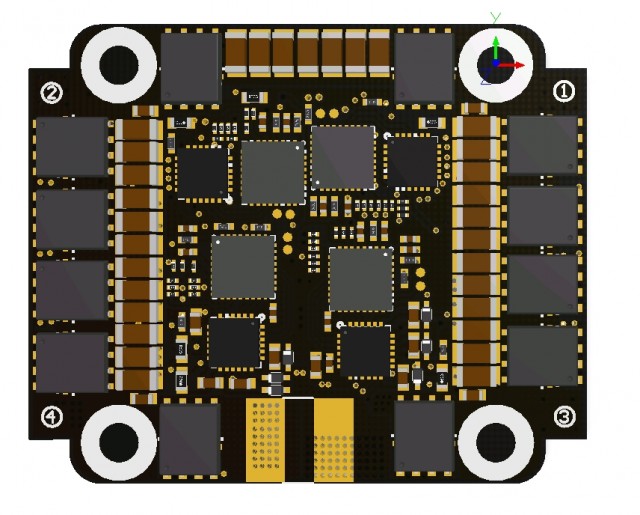

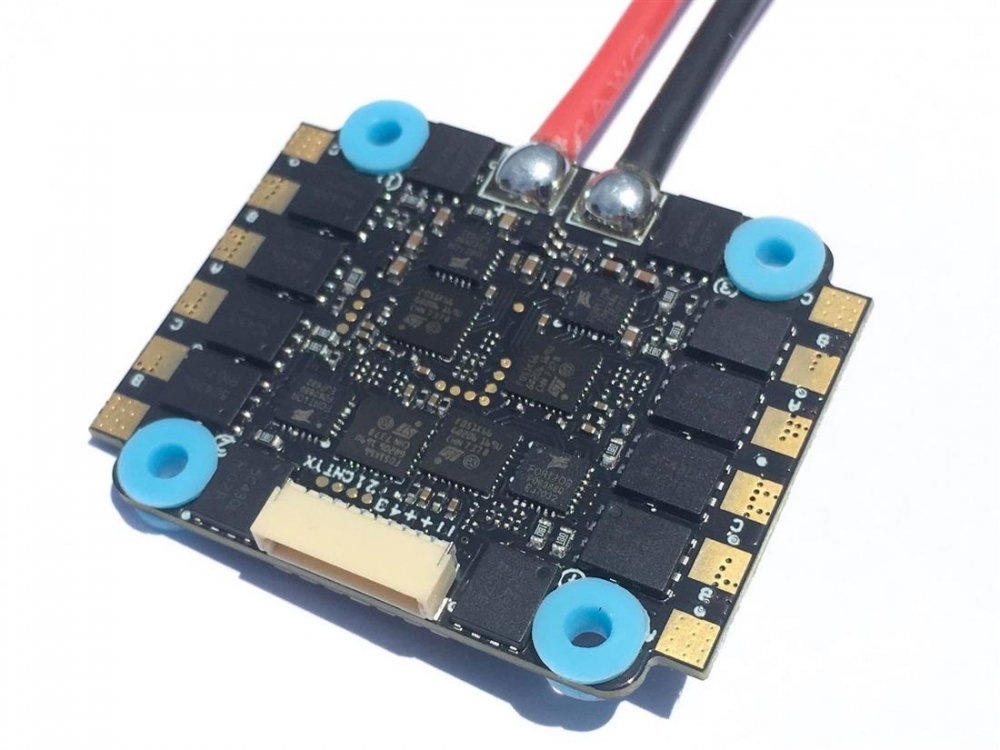

The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 different?

  • New BLHeli_32 code base
  • Programmable PWM frequency of up to 48KHz
  • Auto-timing for higher efficiency and reliability
  • Voltage/Current sensing
  • Adjustable “Brake on Stop” force
  • Improve direction change in Bidirectional mode
  • ESC Telemetry (Voltage and RPMs only, no current)
  • Configuring from FC using DShot commands



Specifications

Battery 2-6s
Constant Current 35A
Burst Current 50A <10S
Mount Hole 30.5*30.5mm
Firmware BLHeli32
MCU STM32 F0
BEC 5V/2A
Current Sensor Analog Only
Current Scale ~210
Signal wire length 100mm
Battery wire length 100mm
Weight (with/wire) 13.5g
