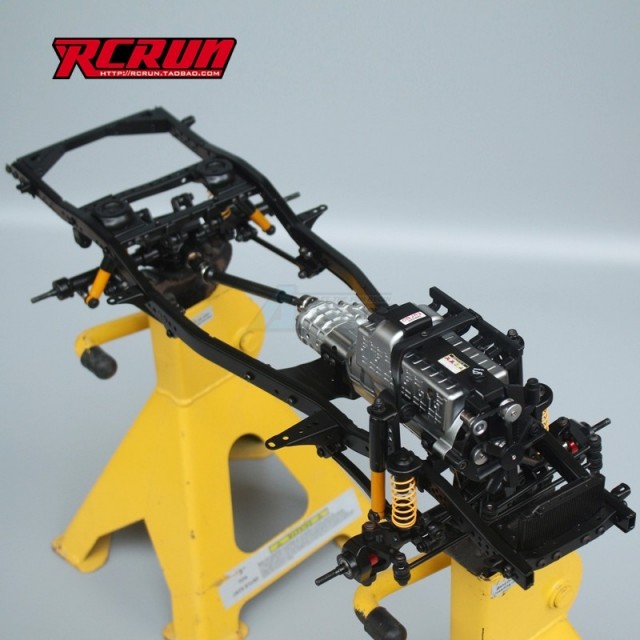

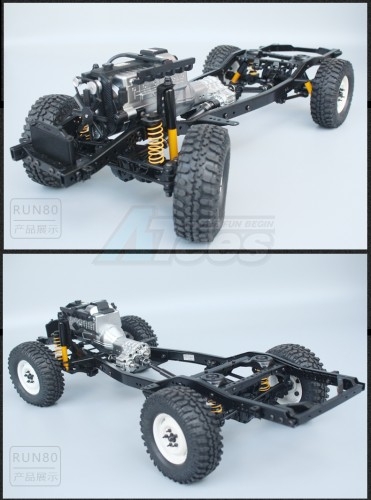

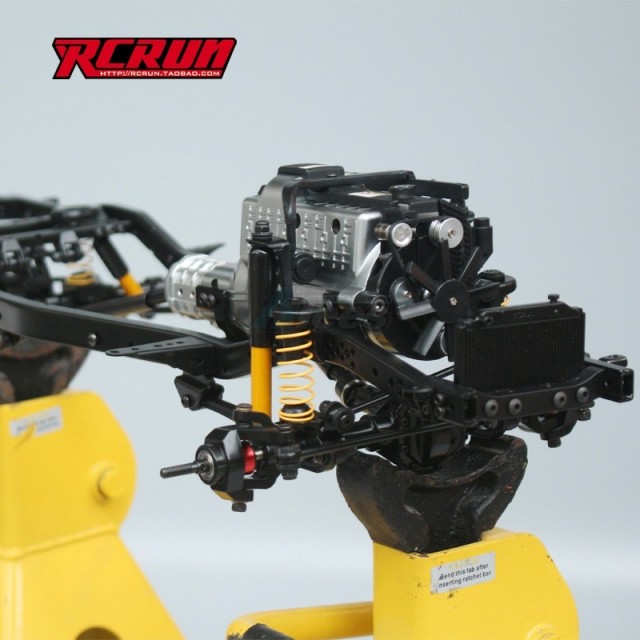

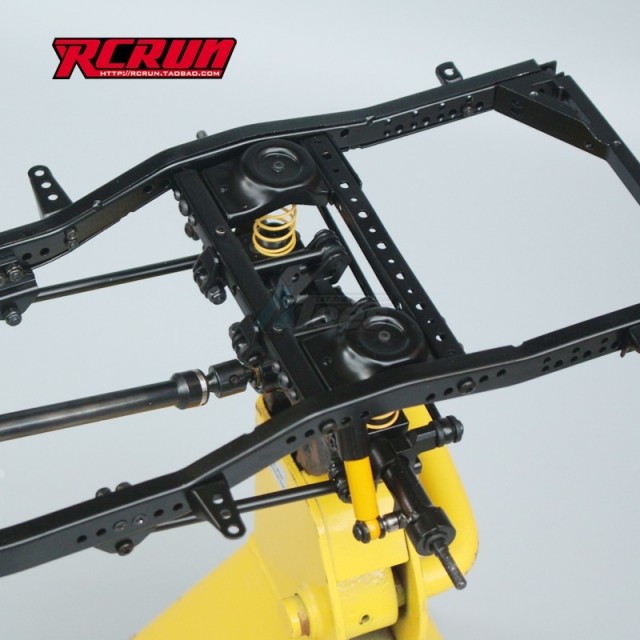

This is an RCRun Run-80 1/10 LC80 Metal Chassis Frame Builders Kit. The chassis design is based on the 1:1 Toyota Land Cruiser 80. Front axle with leading arms, and rear solid axles
Features:
- Realistic chassis design
- Full metal material
- Scale engine
- Adjustable Wheelbase
- Alum internal shocks
Specifications
- Wheelbase: 319MM (Adjustable Maximum 343MM, Minimum 295MM)
- Size
- Front Width: 74MM / 2.91"
- Rear Width: 118MM / 4.65"
- Axle Width: 171MM / 6.73" (Not Included Hex)
- Total Length: 519MM / 20.43"
- Weight: 2.7KG

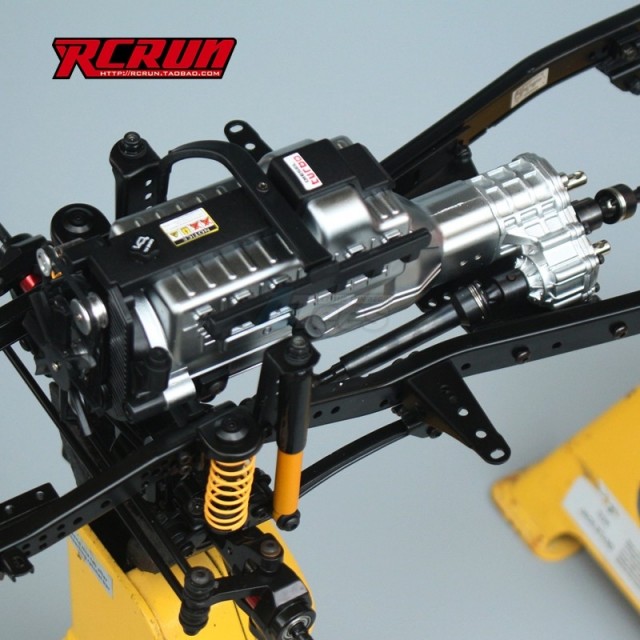

TRANSMISSION:
- Front-Mounted Moter (NOTE: motor not included.)
- Realistic, detailed transmission housing in a cast metal look
- All metal internal gears
3 output shaft, Forward/Reverse, linear + inertial output
- Realistic scale cooling fan(Equipped with mini motor and belt drive)
- Adjustable installation
- Gear ratio 1:24.8
AXLES:
- Die-cast zinc alloy housing
- Ackermann steering, Up to 45 degrees
- Front / Rear Panhard bar
- Reverse transmission, smooth action for an efficient drivetrain
- Hardened steel helical gear set
- Compact yet durable design
- The gear ratio of 1:3.6

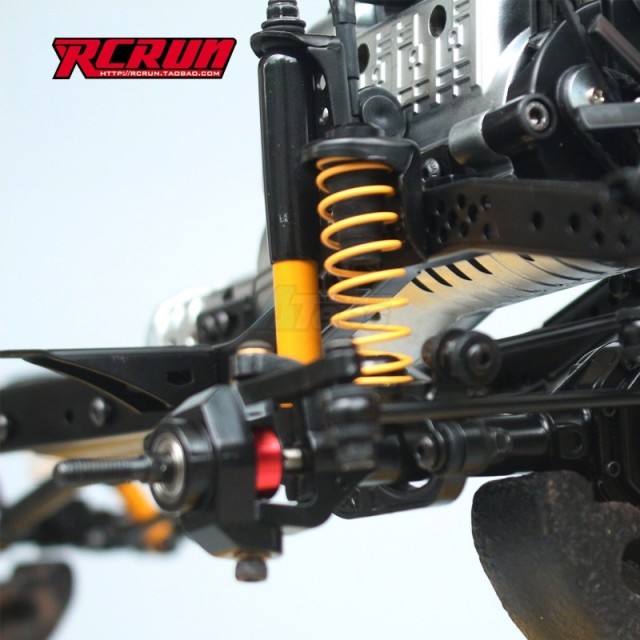

SHOCKS:
- Separate design, spring + shock damping
- Compact yet durable design
- Organ style cover, Highly detailed and super realistic
DRIVESHAFTS:
- The front and rear driveshafts feature an updated design for added strength
- Added carbon hardened steel material which reduces flex and fatigue
- A hexagon splined slide offers super travel length and super-smooth operation
SUSPENSION
- The link rod is made out of heat-treated carbon steel to withstand extreme conditions and the black rubber boot protects the link rod from the elements for even more durability while adding to the scale look.
You will need:
- Body (TRC/302243)
- Wheels & Tires
- Battery
- Motor & ESC
- Servo
- Radio (TX & RX)
