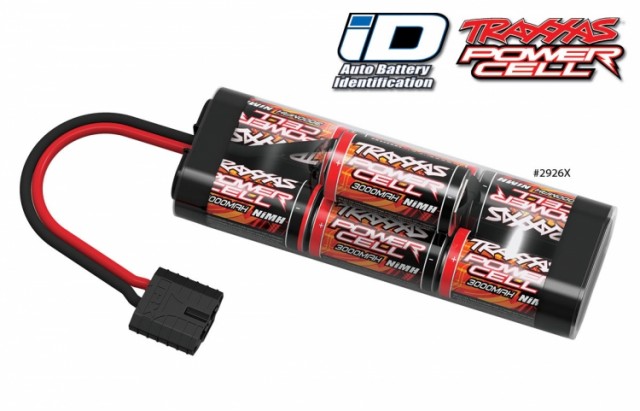

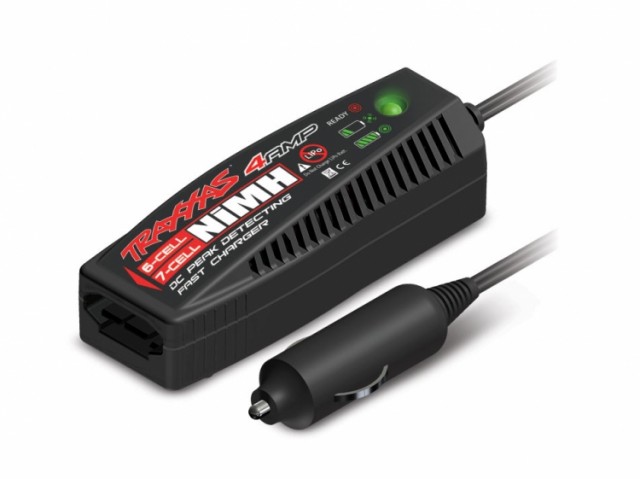

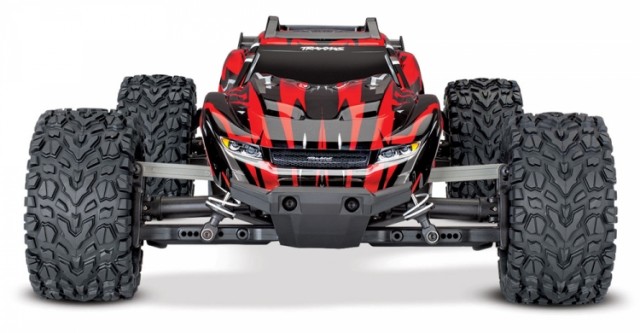

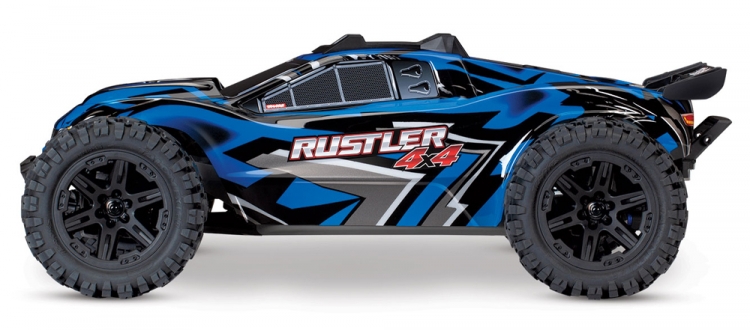

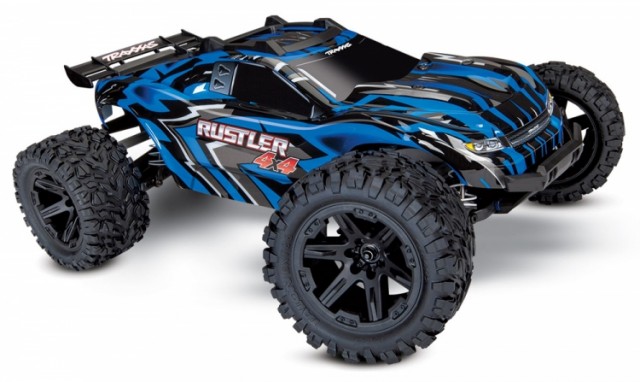

Rustler 4X4 1/10 4WD Stadium Truck with Titan 12T 550, XL-5 ESC including NiMH Battery & Charger
A New Breed of Stadium Truck!

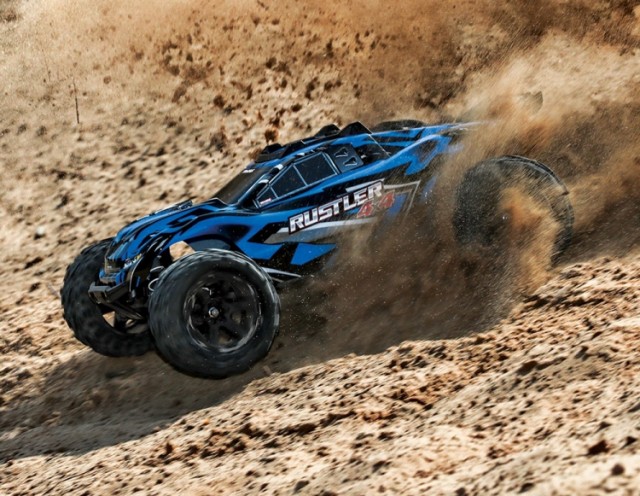

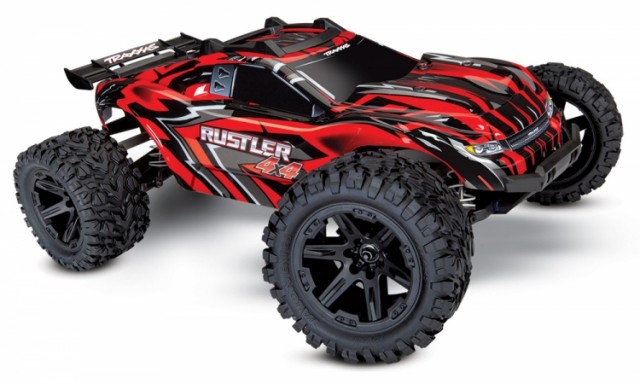

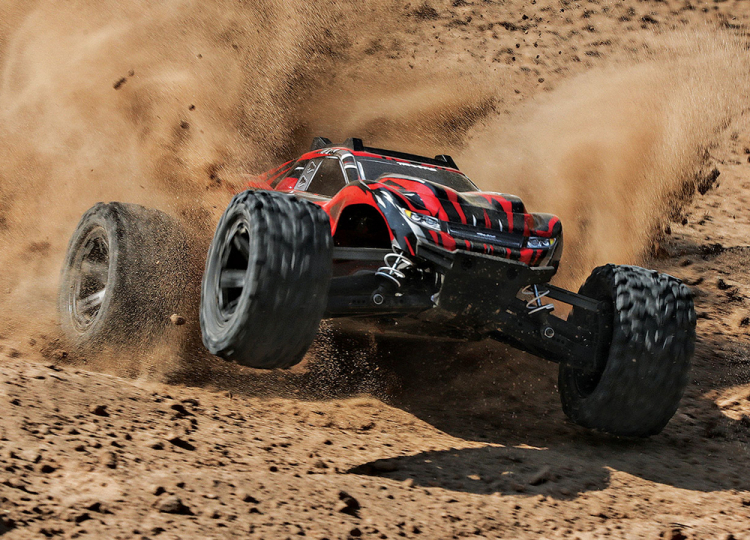

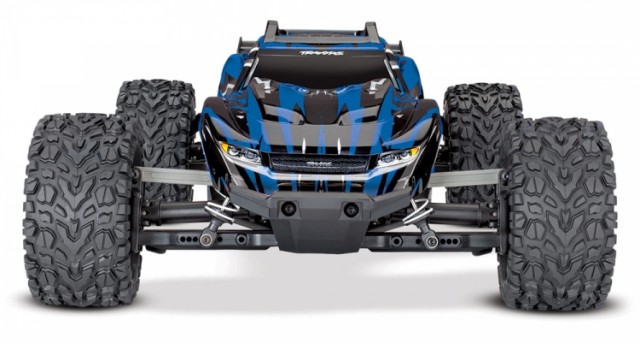

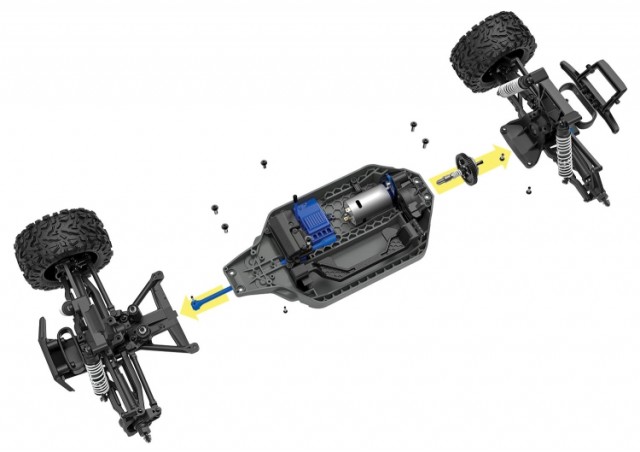

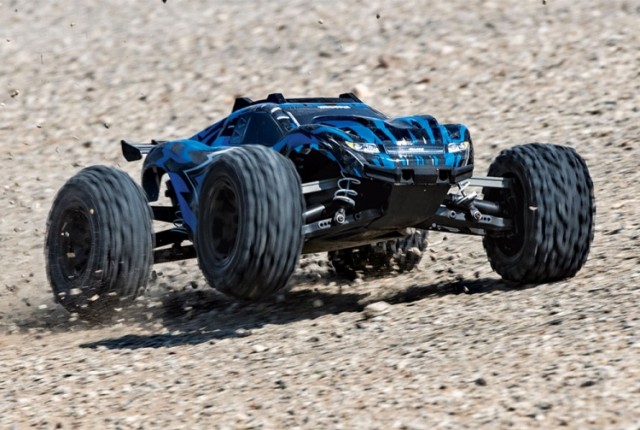

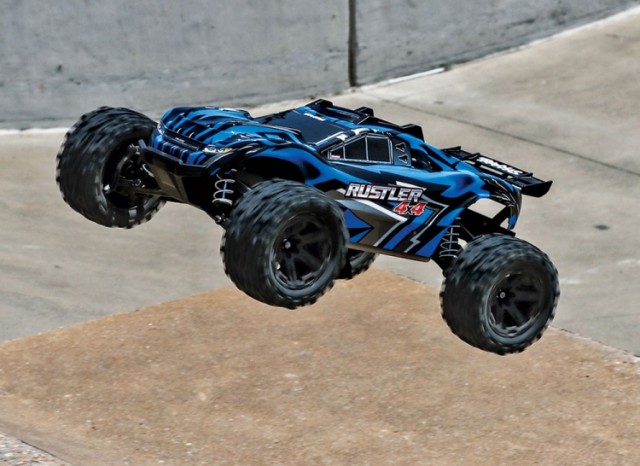

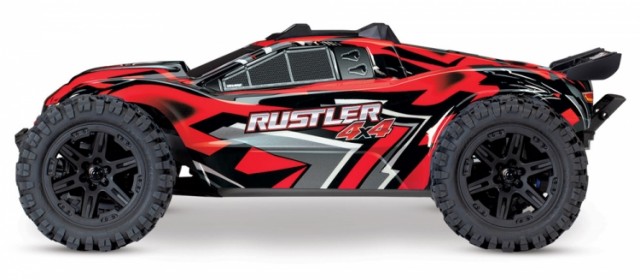

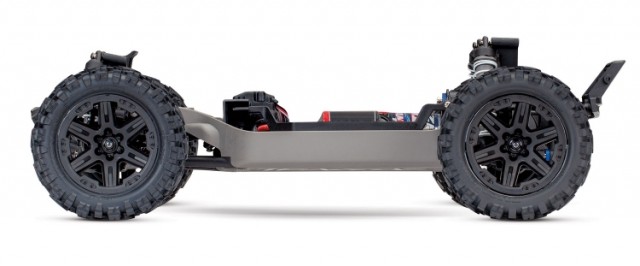

The Rustler 4X4 is a new breed of stadium truck. Rustler 4X4 combines the agility and speed of the Rustler but with 4-wheel drive performance, increased durability and even more fun! Underneeth the reinforced clipless bodyshell, the all-new 4WD chassis sits lower, with a wider stance and longer than ever before for increased stability and handling. The waterproof XL-5 electronic speed control and Titan® motor deliver a high horsepower level and all-weather fun. Large Talon™ EXT tires provide versatile grip on any surface - from backyard trails to concrete skate parks. Rustler 4X4 destroys convention to become the new standard for 4x4 stadium trucks!
Rustler 4X4 Specifications:
- Length: 457mm
- Front Track: 329mm
- Rear Track: 329mm
- Center Ground Clearance: 27mm
- Weight: 2.15kg
- Height (overall): 161mm
- Wheelbase: 295mm
- Shock Length: Long (front), XX-Long (rear)
- Tires: Talon™ EXT with Foam Inserts
- Tire Diameter: 114mm (front and rear)
- Wheels (front/rear): 2.8" Black Multi-Spoke (1/2-offset)
- Wheel Diameter: 2.8" (71mm)
- Speed Control Type: XL-5™ Electronic Speed Control

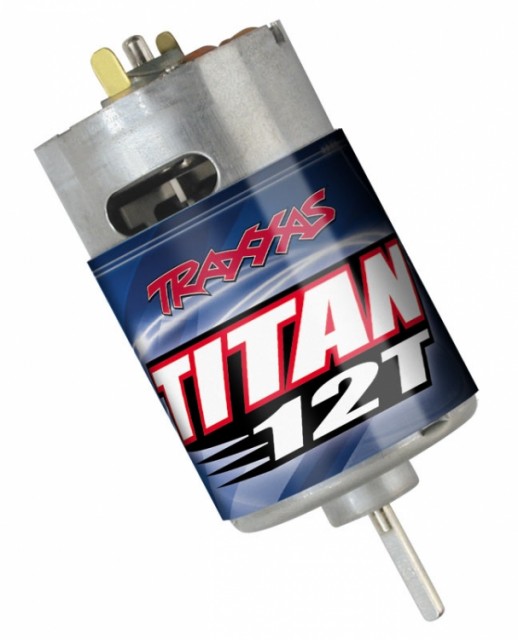

- Motor (electric): Titan® 12T 500 (12-turn)
- Final Drive Ratio: 21.11:1 (stock, out-of-box)
- Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
- Gear Pitch: 32

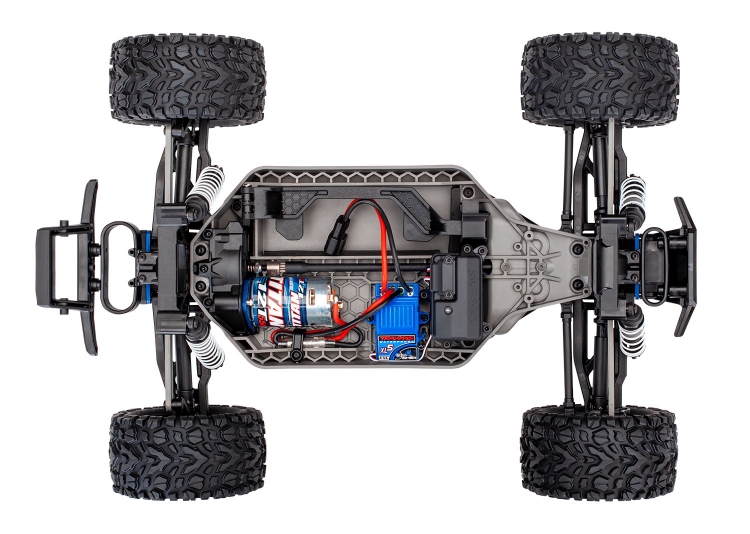

- Chassis Structure/Material: Molded Tub / Nylon Composite
- Drive System: Shaft-Driven, Direct Drive 4WD

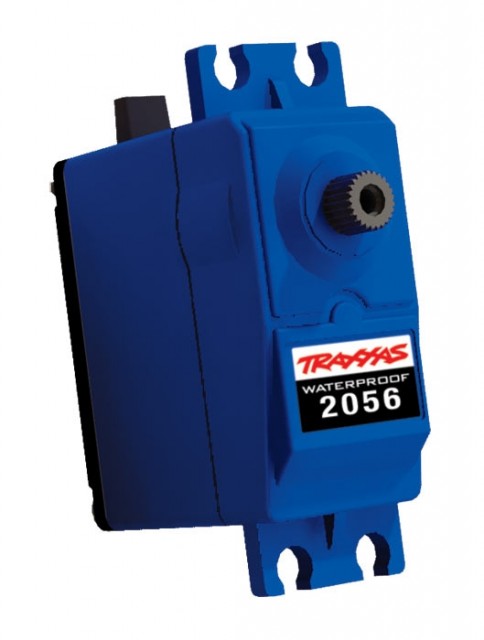

- Steering: Dual-Bellcrank with Integrated Servo Saver

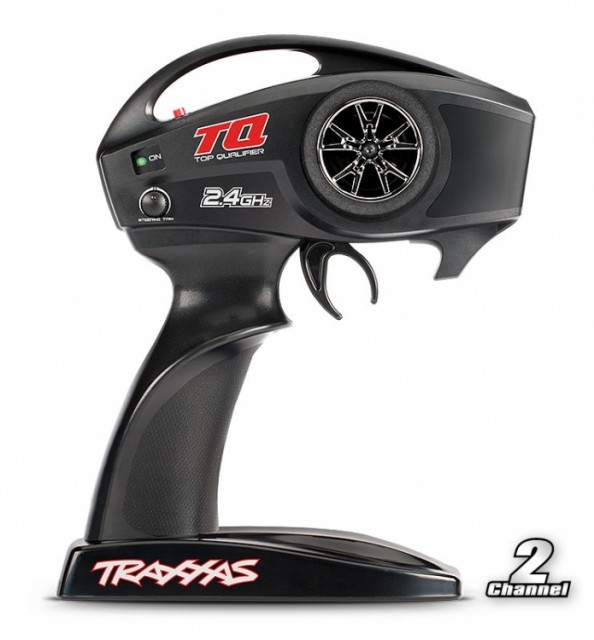

- Radio System: TQ™ 2.4GHz (2-channel)
- Body: Clipless ProGraphix®
- Skill Level: 1

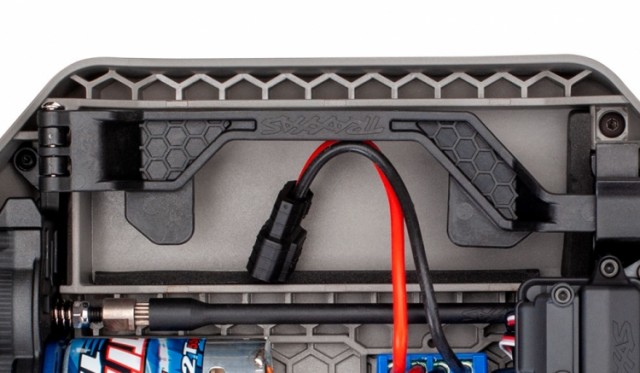

- Battery Tray Dimensions: 143 x 50 x 25mm
- Required Items: 4 "AA" Batteries (transmitter)

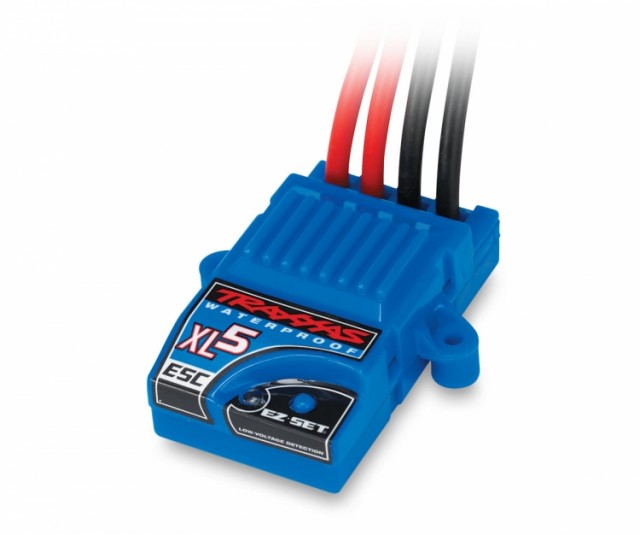

XL-5 (WATERPROOF) ESC SPECIFICATIONS:
- Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
- Case Size: W31 x D55 x H15mm
- Weight: 2.44 Ounce
- Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
- On Resistance Forward: 0.007 Ohms
- On Resistance Reverse: 0.014 Ohms
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 127mm
- Input Harness Wire: 26 Gauge / 228mm
- PWM Frequency: 1600 Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
*Patented
**Properly Geared
