Axial Capra 1.9 Unlimited Trail Buggy Builders Kit

PrisNOK4 795,00 inkl. mva.
Lagerstatus:
Utsolgt
Artikkelnr.:
AXI03004B
Produsent:
Axial

E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)
Product_axi03004_capra_kit_950x450

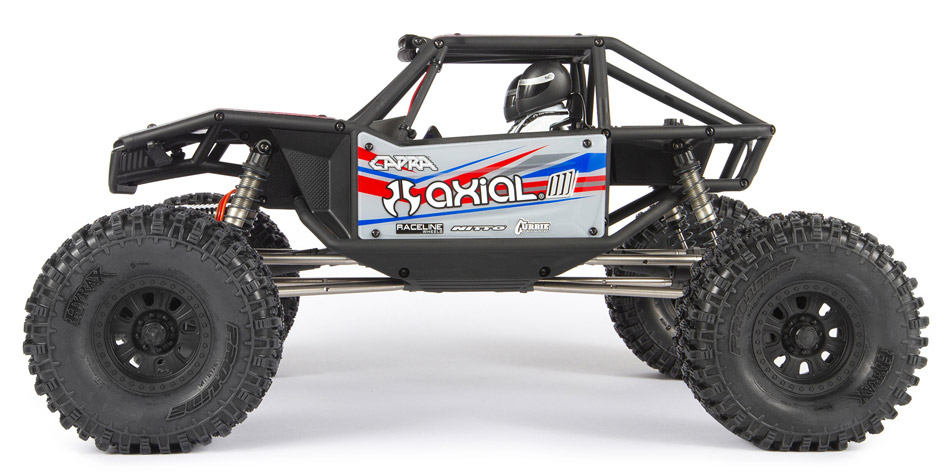

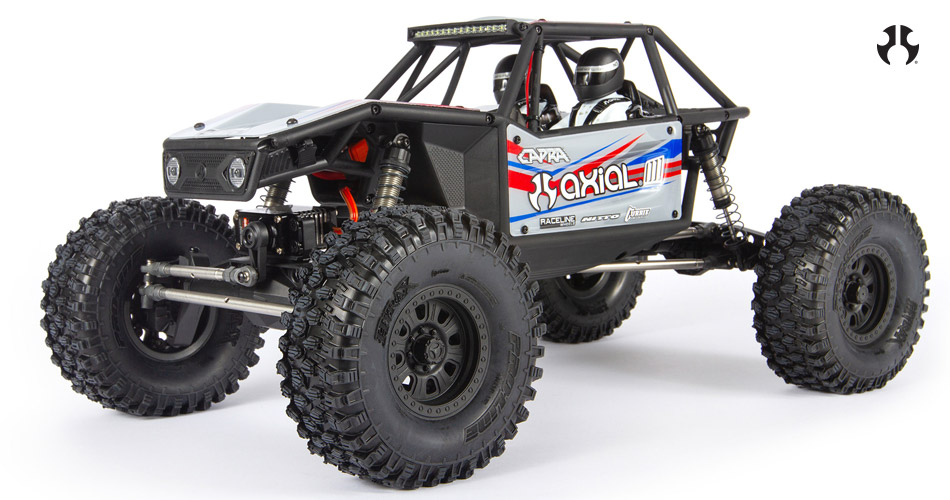

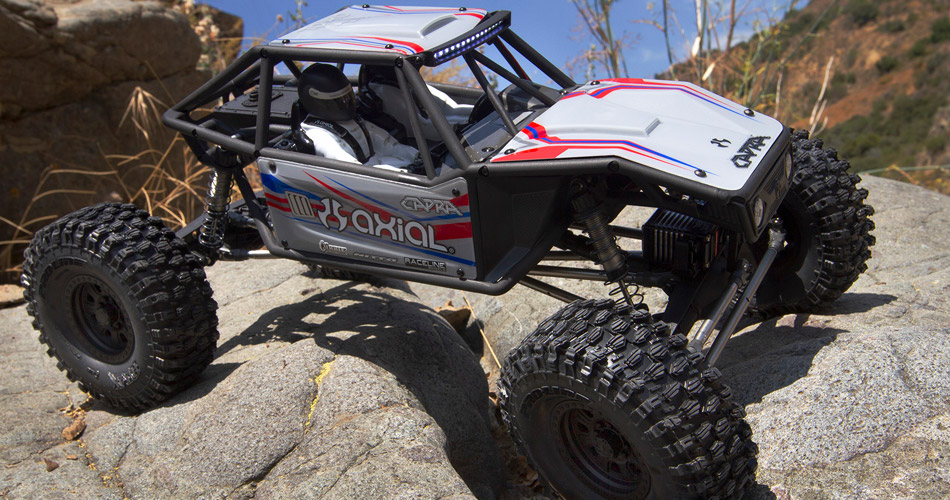

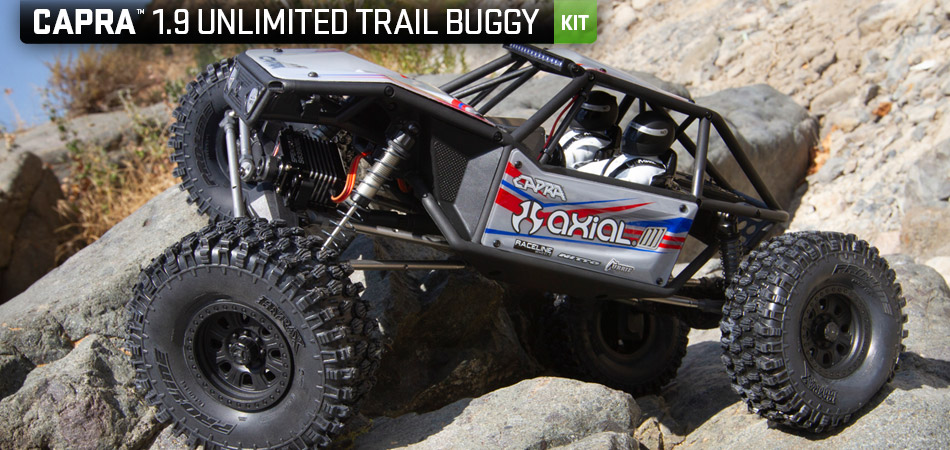

The Axial® Capra™ 1.9 Unlimited Trail Buggy Builder’s Kit is a “new from the ground up” design that any advanced RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included DIG transmission, you can also switch on the fly between 4WD and FWD directly from your 3-channel transmitter — locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on licensed Raceline 3-piece molded beadlock wheels that can be fitted with whatever 1.9 tires you prefer. For pioneering performance in an RC trail buggy kit, choose the Axial Capra.


Capra_portal_axle_950

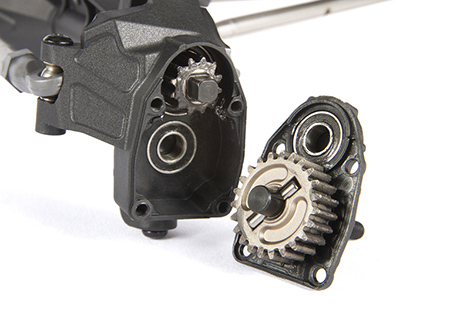

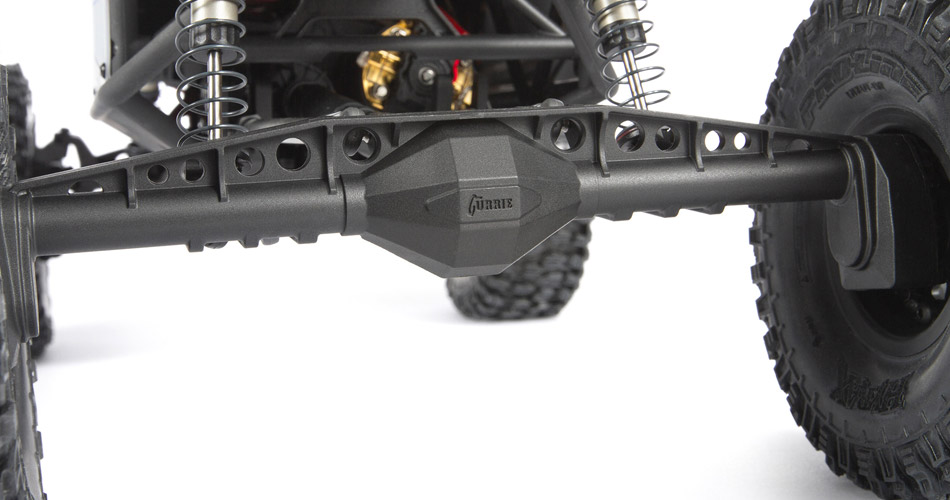

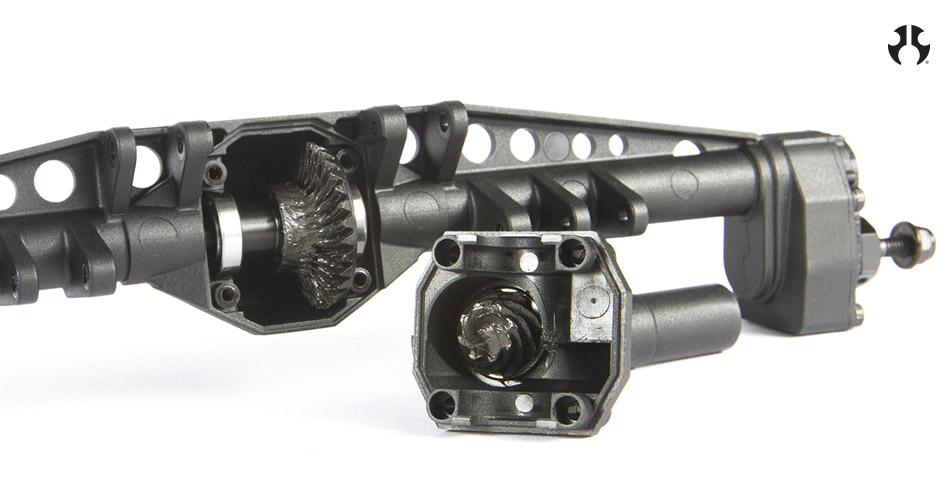

CURRIE F9 PORTAL AXLES
The Currie F9 Portal Axles add substantially more ground clearance at the diff pumpkin while also providing an excellent 7.39:1 gear ratio. Completely ball bearing driven, and metal gears throughout for durability.

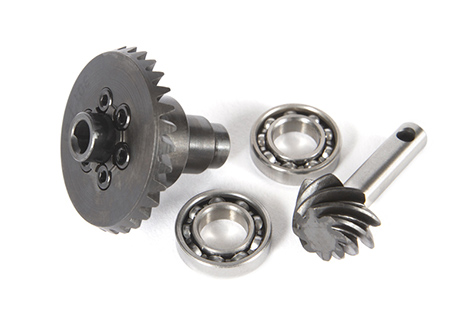

HI-PINION GEARS
The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.

Capra_axle_01_950
Capra_01_950
Capra_logo_950
Capra_02_950



Capra_cage_top_950
Capra_side_950
Capra_portal_gears_470px
Capra_high_pinion_gears_470px

FEATURES:


Capra_dig_950
Capra_transmission_gears_470px
Capra_transmission_2_470px

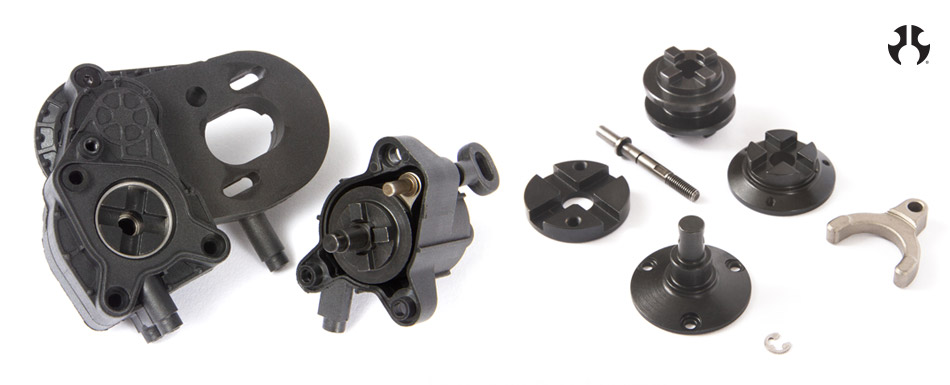

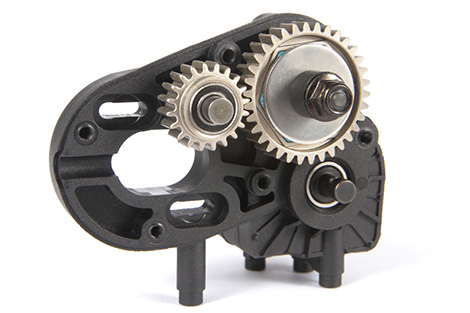

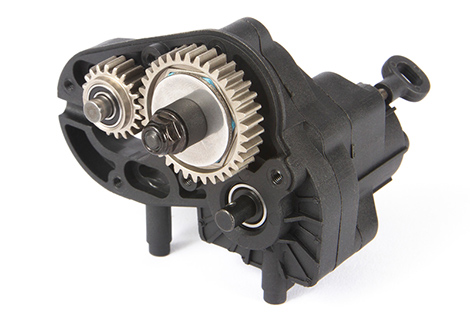

DIG TRANSMISSION
The new transmission has a DIG function that offers the tightest turning radius on a production crawler in the industry. When needed, simply switch from 4WD to front-wheel-drive by locking the rear axle from your transmitter. The transmission also includes a full set of ball bearings and all metal internal gears for strength and durability.

NOTE: Dig functionality requires an additional micro servo, not included. Micro Dig Servo SPMSSX107 (for Dig operation)


Capra_universal_axles_470px

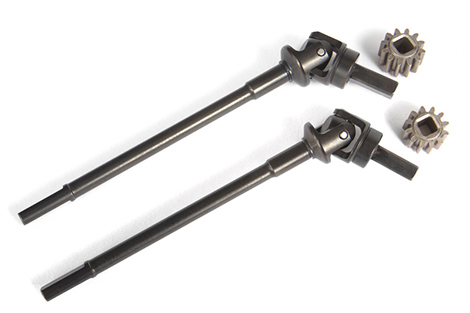

UNIVERSAL AXLE SET
Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

• Up to 45 degrees of steering
• Smooth action for an efficient drivetrain
• Compact yet durable design
• Hardened steel construction

Wildboar_driveshaft_470px

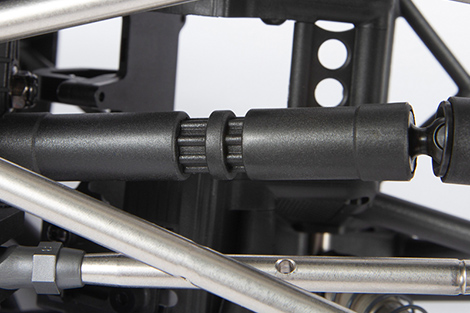

WB8 HD WILDBOAR™ DRIVESHAFTS
WB8 HD Wildboar™ front and rear driveshafts feature a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for greater strength. A center splined slider floats between each end and has added material to reduce flex and fatigue.


Suspension_links_470px
Links_rod_ends_470px

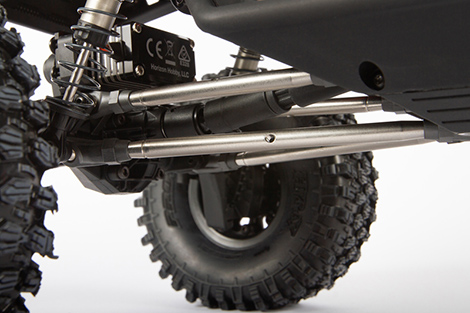

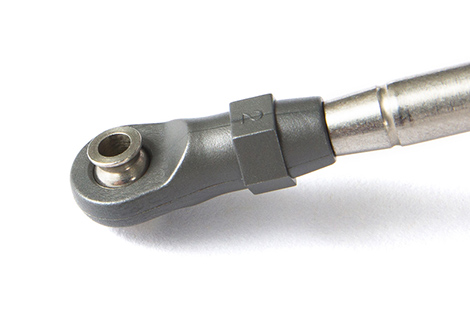

6MM STAINLESS STEEL LINKS
Strong 6mm stainless steel links with high grade plastic rod ends for durability. All links are metal including the steering.



STAINLESS STEEL PIVOT BALLS
All pivot points are on stainless steel balls that provide a durable, long-lasting suspension point.


Skidplate_470px
Steering_links_470px

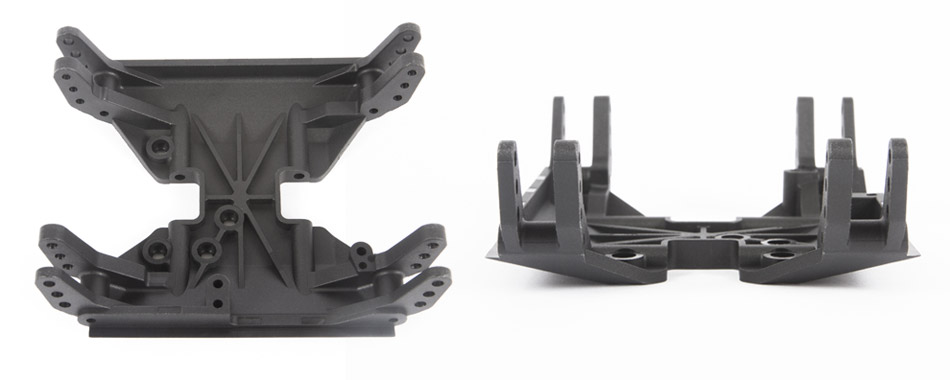

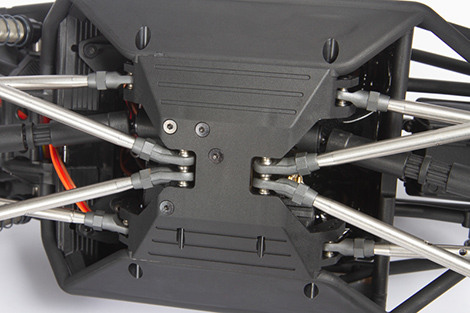

SKIDPLATE WITH BOAT SIDES
The Capra features a small skidplate footprint with boat sides to help maneuver and slide over rough, challenging obstacles.

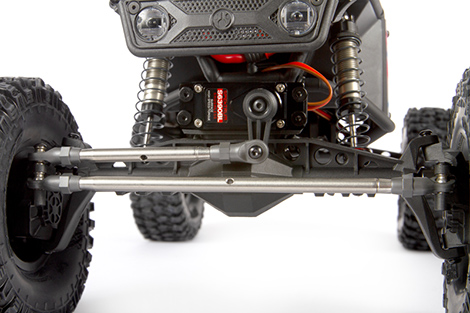

STAINLESS STEEL STEERING LINKS
The steering links are also made from 6mm stainless steel, offering precise steering and durability.


Shock_470px
4-link_suspension_470px

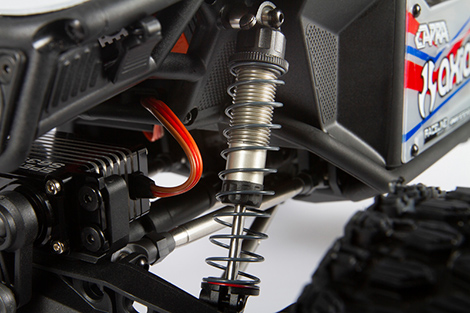

LARGE BORE ALUMINUM SHOCKS
The oil-filled shocks are an all-new design with hard anodized, threaded shock bodies and a single coilover spring. Their increased bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable so you can achieve the best dampening rate.

Springs included:
AXI233006 Spring 13x70mm 1.72lbs/in Red (2) Soft
AXI233008 Spring 13x70mm 2.4lbs/in Green (2) Firm

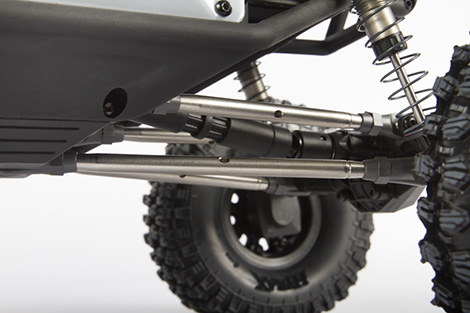

4-LINK SUSPENSION
We´ve fine-tuned the suspension geometry with multiple mounting locations for the upper link mounts to provide the best crawling capabilities.

Skidplate_mount_points_950

Capra_wheels_950

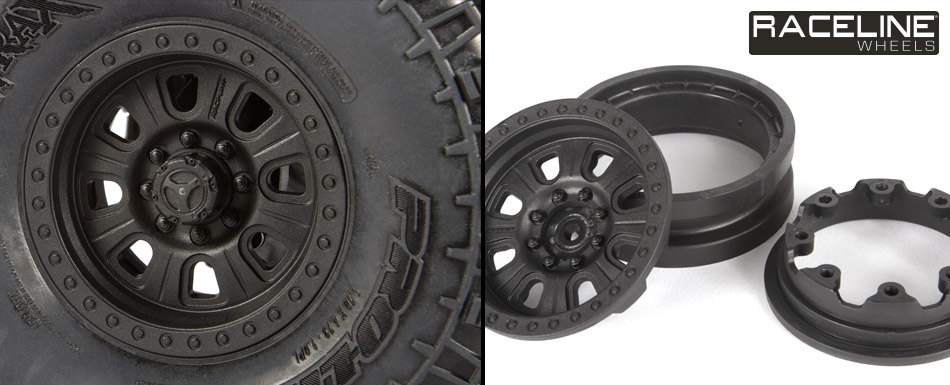

1.9, 3-PIECE BEADLOCK WHEELS
For striking scale looks and serious trail performance, we´ve outfitted the Capra™ with officially licensed 3-piece Raceline Monster beadlock wheels.

NOTE: tires are not included.


Light_bar_950

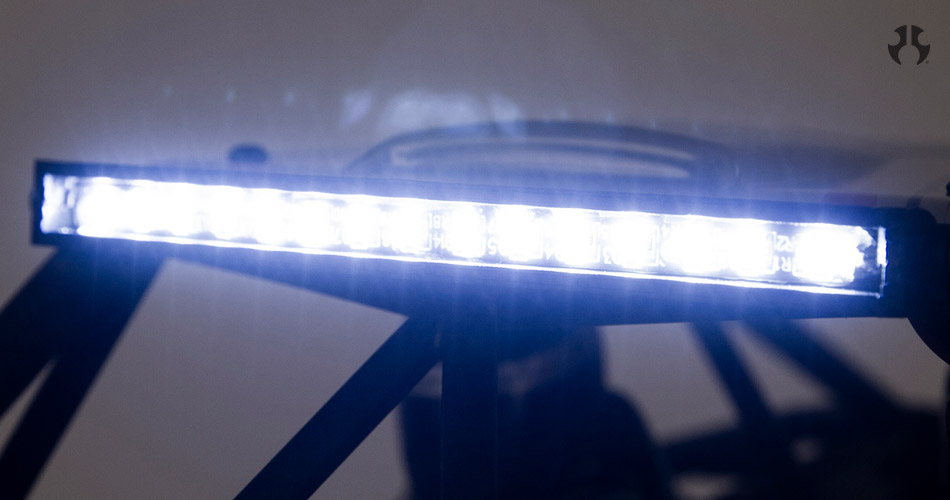

LED LIGHT BAR
A roof mounted LED light bar helps light the way on those late night crawls with your friends. Additional LED lights can be added to the front headlights (optional LED lights not included).


Capra_decals_950
Interior_470px
Grille_470px

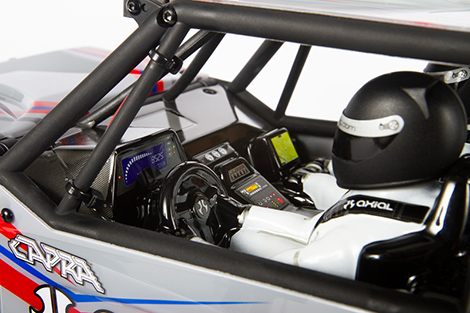

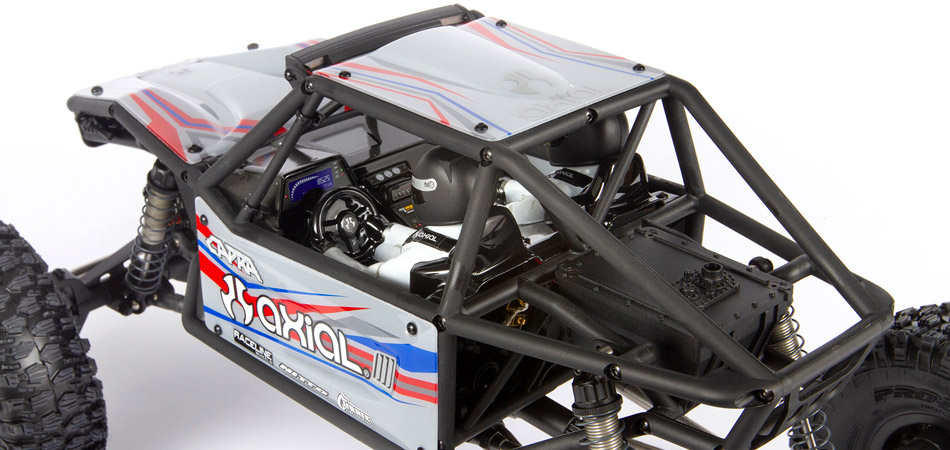

REALISTIC INTERIOR

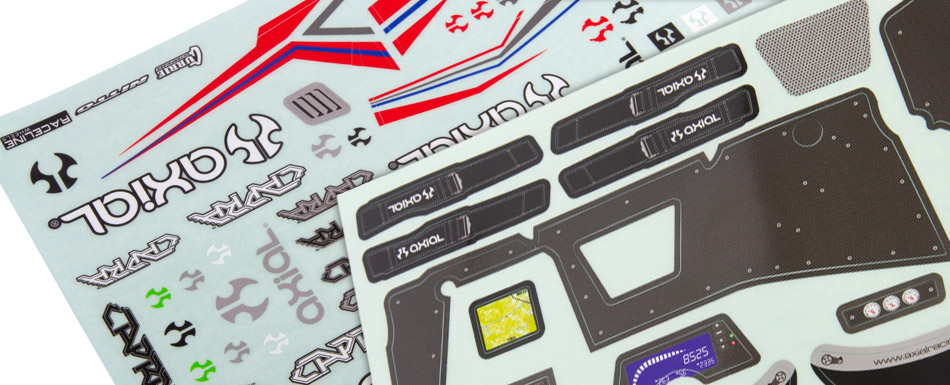

Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!

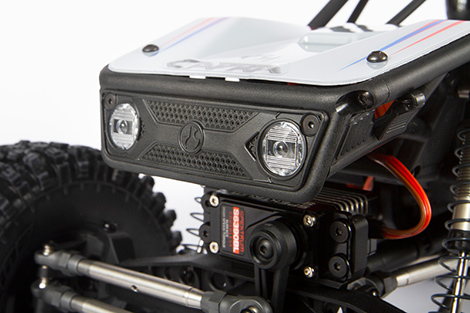

GRILLE AND HEADLIGHT BUCKETS
The molded plastic front grille features two clear plastic headlight lenses with light buckets (optional LED lights not included). Behind the grille, under the hood, are two hood mounts with clips. Remove the clips to raise the hood up and gain access to the battery tray.


Electronics_mount_470px
Battery_tray_470px

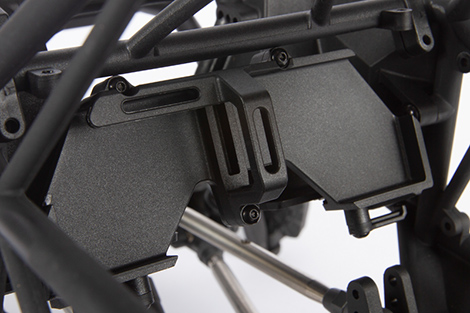

ESC / RECEIVER TRAY
Tucked under the front dash is a cage mounted ESC / receiver tray with integrated, adjustable cable routing to keep your wiring organized.

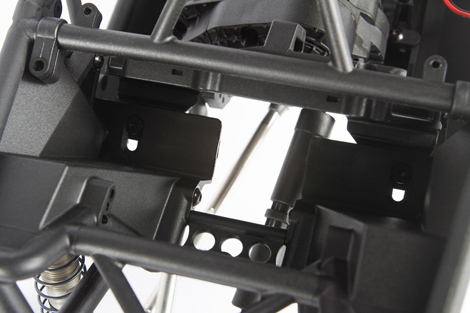

BATTERY TRAY
The battery tray is forward mounted, and located under the hood. The tray size is built for shorty packs, at a maximum size of 26mm x 98mm x 47mm.


Hood_pin_470px
Servo_horn_470px

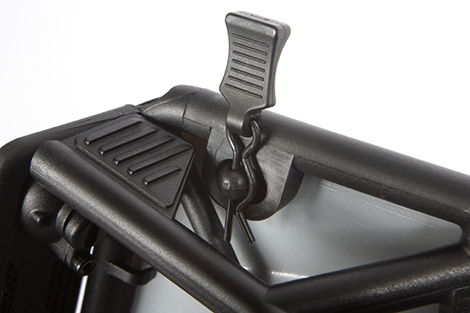

HOOD RELEASE
Remove the clips hidden on the underside of the tube frame to raise the hood up and gain access to the battery tray.

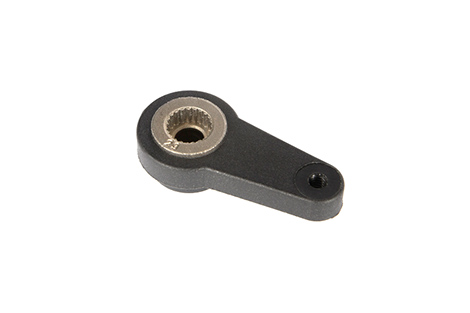

SERVO HORN WITH METAL INSERT
The servo horn features a 23T press fit metal insert for durability.




RECOMMENDED TERRAIN
Terrain_off-road_60x78
Terrain_mountainous_60x78
Terrain_rocky_60x78
Terrain_desert_60x78



REQUIRED ITEMS (not included)
Required_60x78_transmitter
Required_60x78_receiver
Required_60x78_esc
Required_60x78_motor
Required_60x78_servo
Required_60x78_servo-dig
Required_60x78_tires
Required_60x78_battery
Required_60x78_charger
Required_60x78_aa_batteries
Required_60x78_paint
