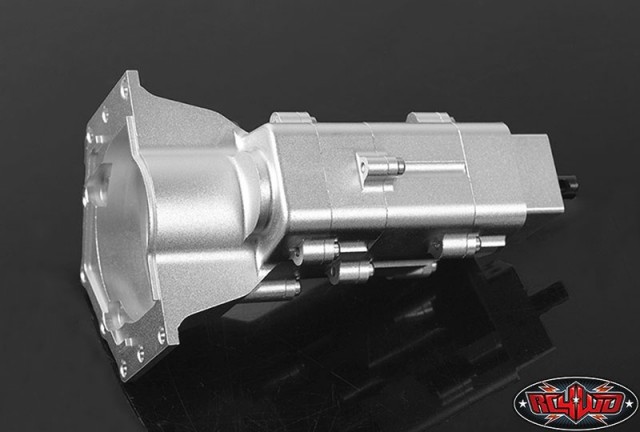

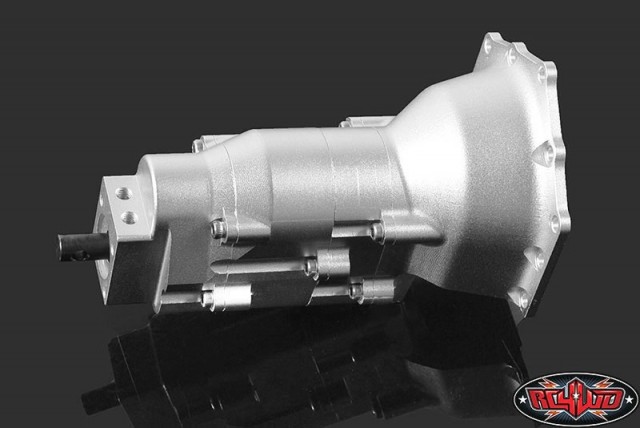

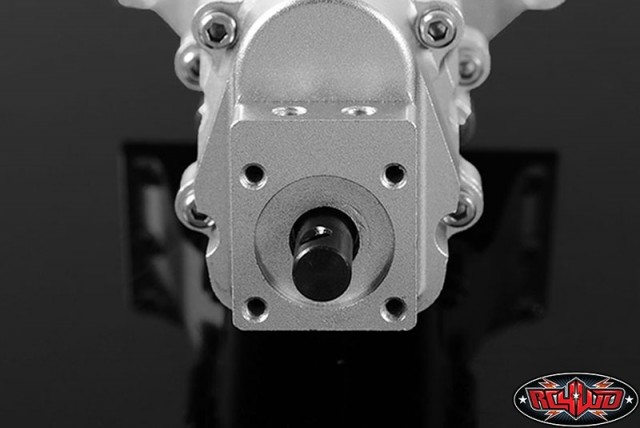

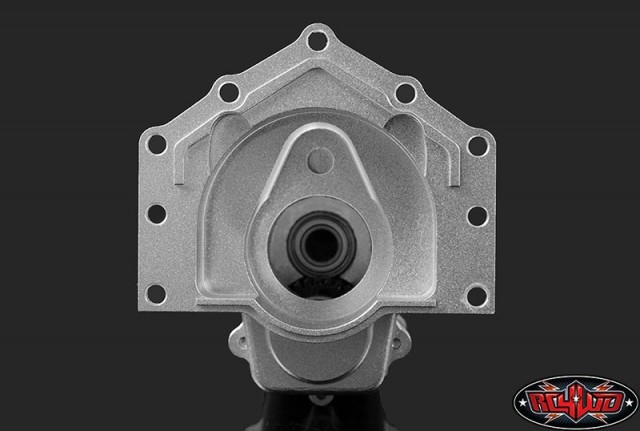

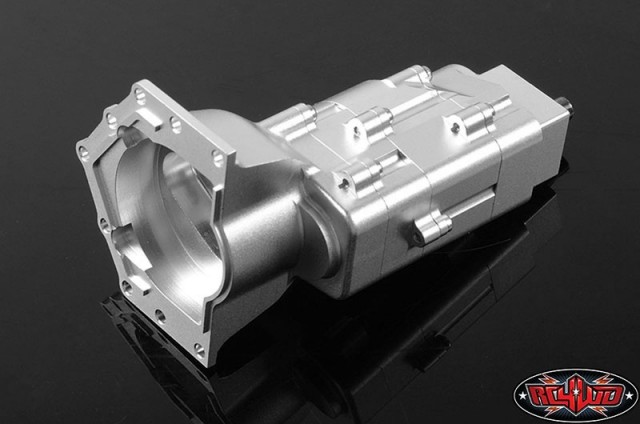

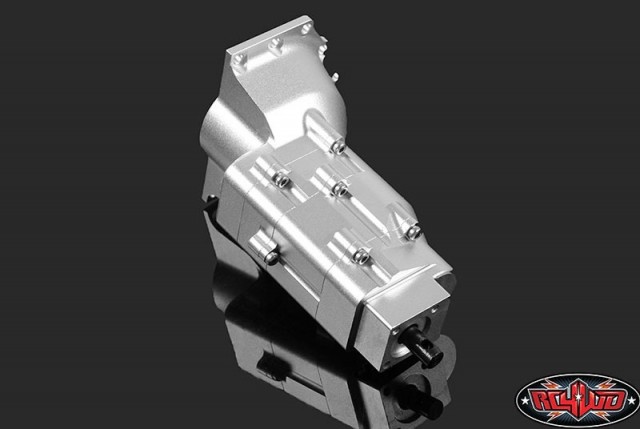

RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission

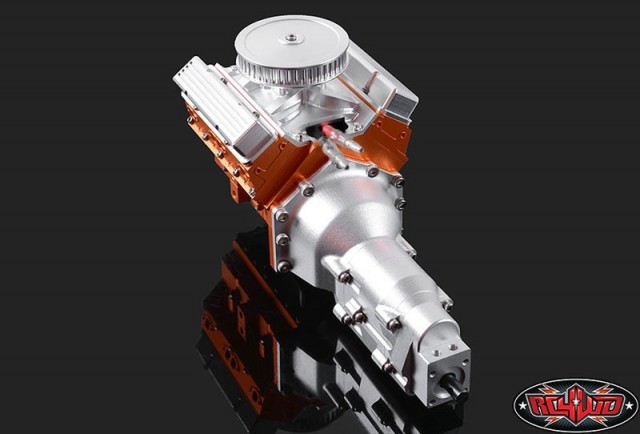

This is the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission. This transmission will be sure to add a whole new level of realism to your build. Pair it with our RC4WD 1/10 V8 Engine to complete your build. This has been Officially Licensed by TCI Automotive and is only available from RC4WD and our Dealers.

Specifications:
  • CNC Machined
  • Billet Aluminum

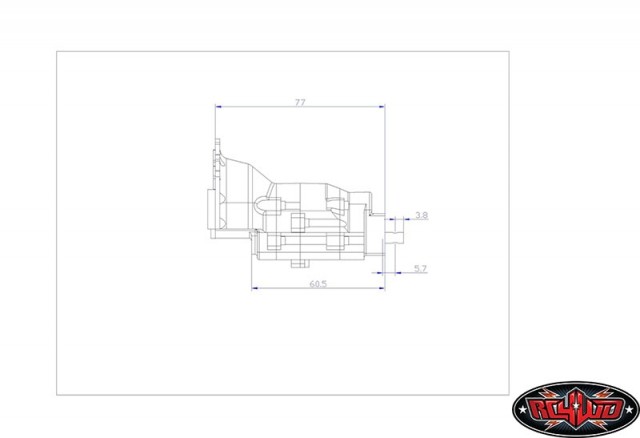

  • Body Width: 1.99in / 50.6mm
  • Body Length: 3.07in / 78mm
  • Body Height: 2.36in / 60mm
  • Output Shaft Length: 0.33in / 8.5mm
  • Output Shaft OD: 0.19in / 5mm
  • Gear Ratio: 10.1:1
  • Weight: 5.86oz / 166g

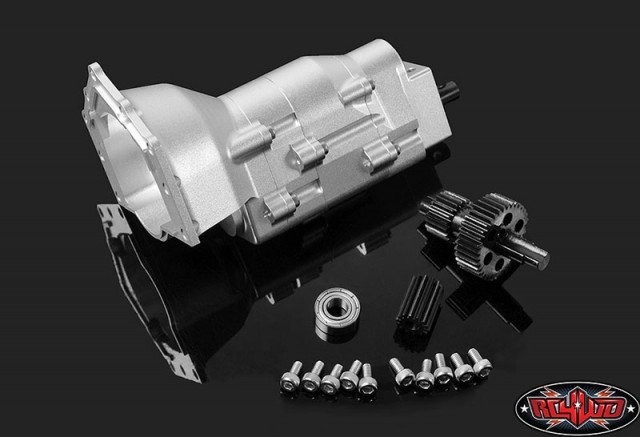

What's Included:
  • 1x RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission
  • 1x 14T 48P Pinion Gear
  • 1x 36T / 20T 48P Gear
  • 10x M2.5 x 5mm SHCS (Silver) (Z-S1207)
  • 1x Metal Shield Bearing 5 x 11 x 4mm
  • 1x TCI Transparent Decal Sheet
  • 1x TCI Small Decal Sheet

Replacement Parts:
  • Replacement Gears for R4 Transmission (Z-G0067)

Required Parts:

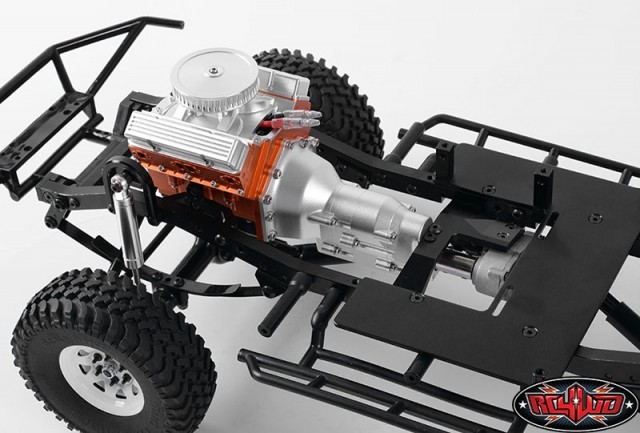

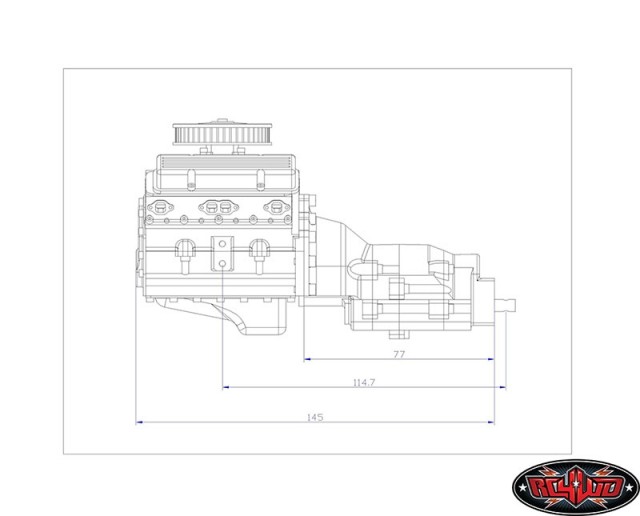

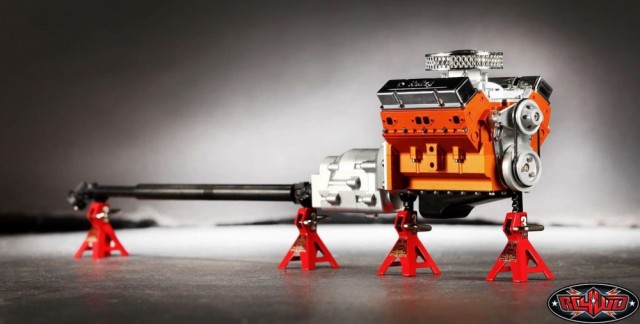

  • 1/10 V8 Engine (Z-S1043)

Optional Parts:

  • Trail Finder 2 V8 Engine Mounts (Z-S1239)
  • Motor Mount for R4 Transmission (Z-S1627)

Replacement Hardware:
  • 7x Metal Shield Bearing 5 x 11 x 4mm
  • 1x Metal Shield Bearing 5 x 10 x 4mm
  • 11x M2 X 6mm SHCS (Silver) (Z-S0994)

Notes:
  • This product can't be installed on TF2 with the 3/4 link (Z-S0603) / (Z-S0565)

Instruction Manual:

TCI Automotive is a registered trademark of COMP Performance Group. The TCI Automotive logo is properly of COMP Performance Group and used under license to RC4WD.
